Industrial Racking Systems
Cantilever Racking System - The Ultimate Long-Load Solution
In industries where long, bulky, or irregularly shaped items dominate storage needs—such as construction materials, metal pipes, timber, or plastic rolls—traditional shelving often falls short. Cantilever Racking System offers a specialized, efficient solution designed to handle these unique challenges. By eliminating front-column obstructions, it provides unmatched accessibility and space optimization, making it ideal for warehouses, logistics centers, and manufacturing facilities seeking to maximize storage density while ensuring operational flexibility.
💡 What Is a Cantilever Racking System?

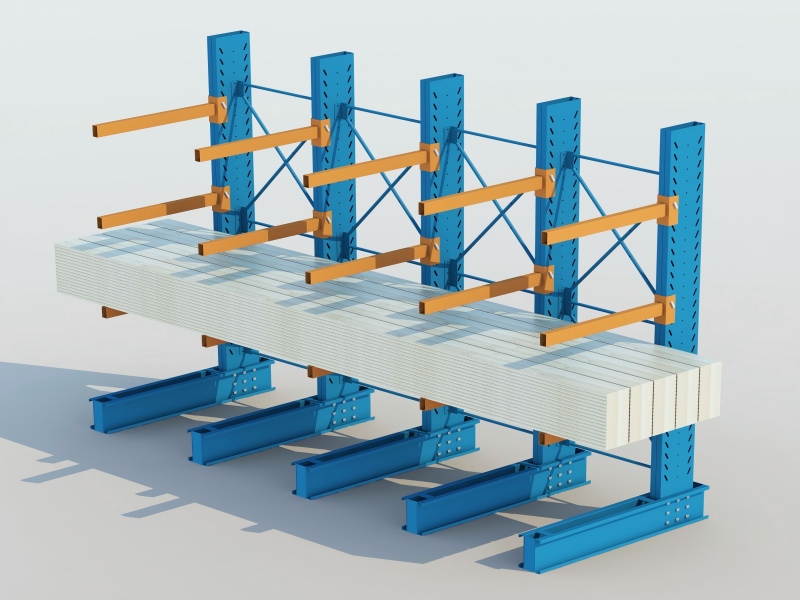

A Cantilever Racking System is a column-free storage structure consisting of columns, arms, and sturdy base . Its open design allows seamless loading and unloading of long or cumbersome goods. Key features include:
Single- or Double-Sided Configurations: Adapt to space and workflow requirements.
Adjustable Arm Height: Arms can be repositioned along columns at custom intervals (e.g., 50mm–100mm increments) to accommodate diverse load sizes.
High-Capacity Design: Supports loads ranging from 500kg to 4,000kg per level, with heights extending up to 15 meters for specialized applications.
Unlike conventional pallet racks, cantilever systems utilize gravity-based support without front-facing beams, enabling full front-to-back visibility and reducing handling time.
✅ Key Benefits of Cantilever Racking
Optimized Space Utilization
By removing aisle obstructions, cantilever racking increases storage density by up to 35% compared to standard shelving. Its vertical design leverages warehouse height efficiently, supporting mezzanine integrations for multi-level storage.
Enhanced Accessibility and Safety
Forklifts or cranes can approach loads directly from any angle, minimizing accidents and streamlining operations.
Reinforced Structures: Heavy-duty steel columns and arms with anti-slip surfaces prevent load displacement.
Durability and Customization
Constructed from Q235B steel or cold-rolled profiles, these racks resist deformation under heavy loads.
Options include powder-coated finishes (RAL colors) for corrosion resistance and tailored dimensions to fit unique layouts.
Cost-Effective Storage for Specialized Goods
Ideal for industries like construction, lumber, and metalworking, where long, non-stackable items are common. Reduces damage risks by providing dedicated, organized storage.

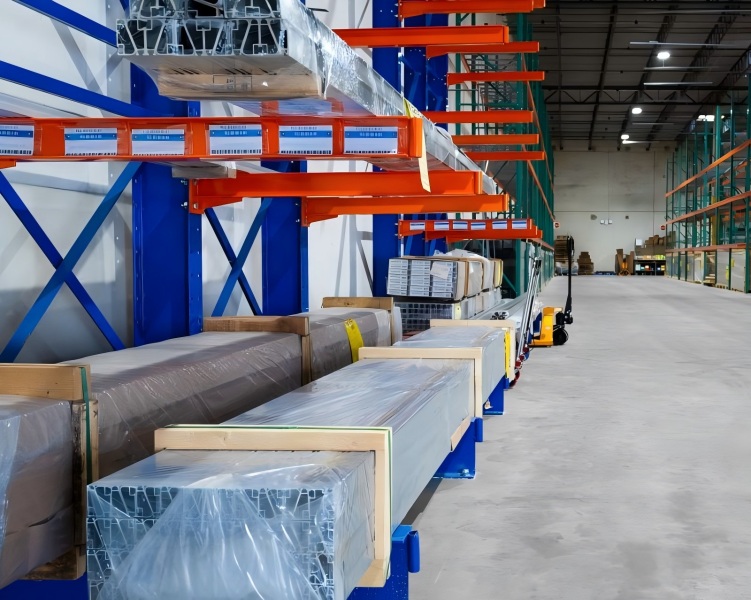

🏭 Applications Across Industries
Cantilever racking excels in sectors requiring efficient long-load management:
Construction: Stores steel bars, pipes, and PVC conduits with easy crane access.
Manufacturing: Holds raw materials like plastic rolls or aluminum profiles.
Retail and Logistics: Supports timber, furniture, or HVAC components in distribution centers.
Cold Storage: Compatible with temperature-controlled environments for storing elongated food or beverage items.
📊 Cost and ROI Analysis
While initial costs are 20–40% higher than standard shelving, cantilever racking reduces long-term expenses through:
Lower damage rates for sensitive materials (e.g., polished metals).
Faster inventory turnover due to streamlined loading/unloading.
Most users achieve ROI within 2–4 years via saved space and operational gains.
💎 Conclusion
A Cantilever Racking System is a strategic investment for businesses dealing with long, heavy, or irregularly shaped goods. Its robust design, adaptability, and space-saving advantages make it indispensable for modern industrial storage.
